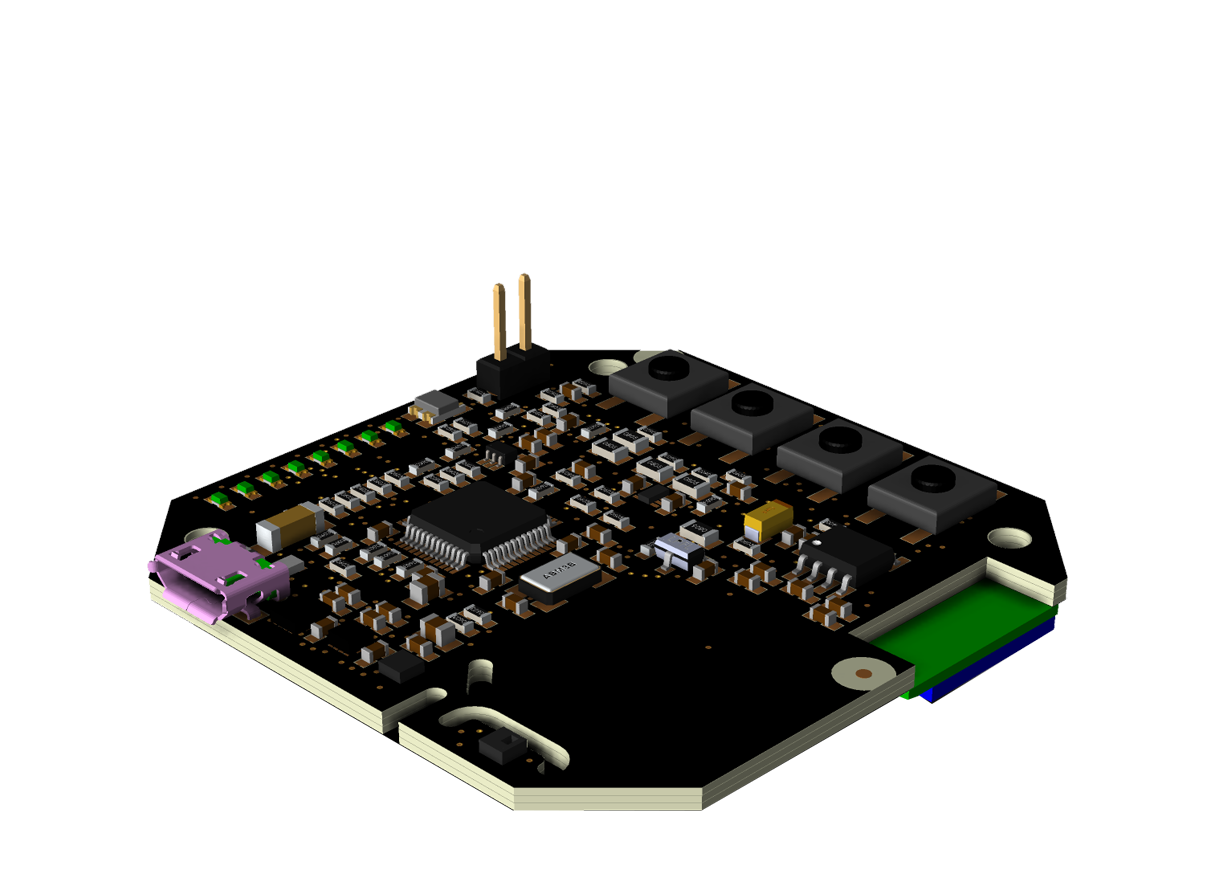

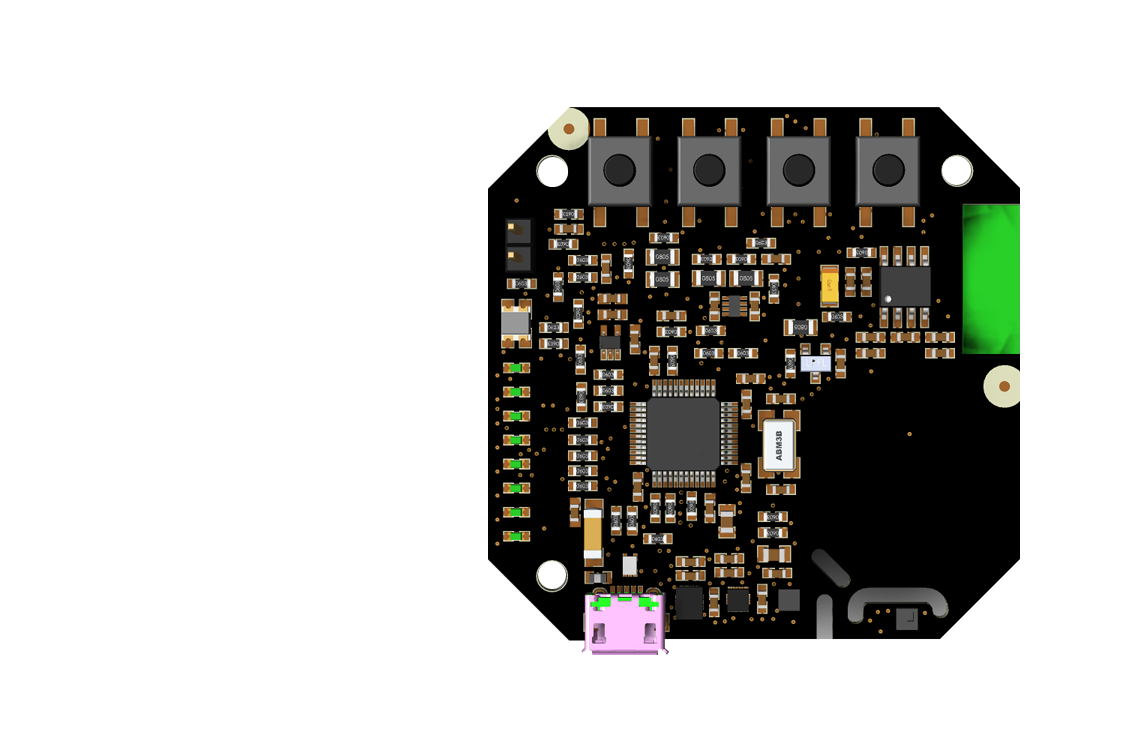

PA194 board is the industrialized version of the FP-CLD-WATSON1 STM32 ODE functional pack. It can connect IoT node based on STM32 Nucleo to IBM Watson IoT, transmits sensor data and receive commands from cloud application.
Motion & environmental sensors board connected to the cloud through Wi-Fi network using SSID, Password and web authentication stored in the dynamic NFC.
PartnerSTMicroelectronics, Silicon Labs, Murata, Semtech
CPU ARM Cortex-M4 84MHz
512 kB FLASH
96 kB RAM
9-axys IMU (3-axys GYRO+3-axys ACC.+3-axys MAGN.)
Environmental sensors : temperature, humidity, pressure.
4-Kbit Dynamic NFC / RFIDtag M24SR64-YMN6
Wi-Fi b/g/n intelligent module
ST-Link V2 JTAG debugger embedded
USB for power and virtual com
LEDs and buttons
Expansion connector for I2C, UART or 4 GPIO
